Netbox Topology Views Plugin

Create topology views/maps from your devices in netbox. Support to filter on name, site and device role.

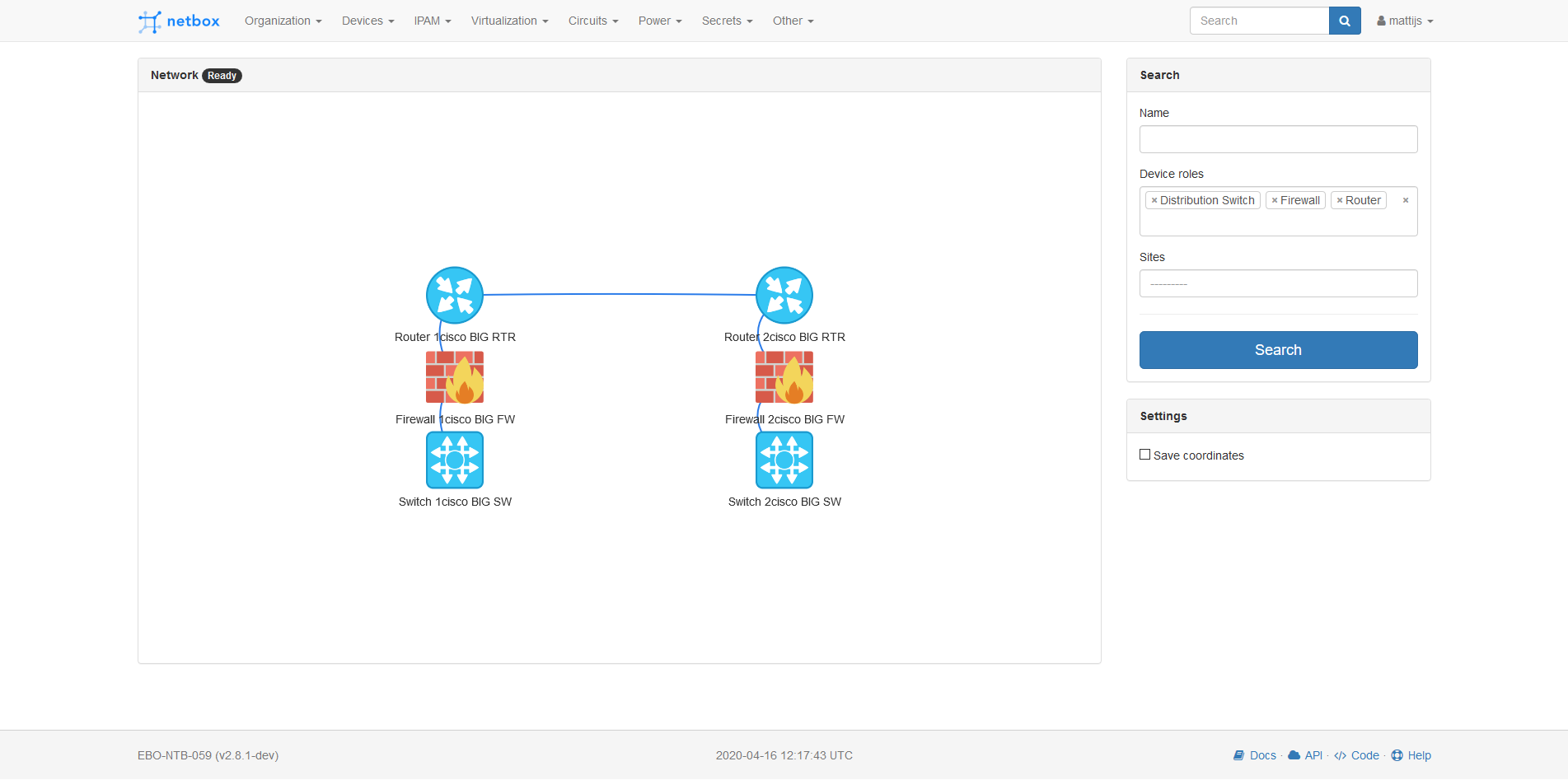

Preview

Install

Run pip install netbox-topology-views in your virtual env.

Add 'netbox_topology_views' to the PLUGINS array in your django configuration file.

Then run python3 manage.py collectstatic --no-input

Custom field: coordinates

There is also support for custom fiels.

If you create a custom field "coordinates" for "dcim > device" with type "text" and name "coordinates" you will see the same layout every time.

The coordinates can then be provided as: "X;Y"

Configure

If you want to override the default values configure the PLUGINS_CONFIG in your netbox configuration.py.

Example:

PLUGINS_CONFIG = {
    'netbox_topology_views': {
        'device_img': 'router,switch,firewall',
        'preselected_device_roles': 'Router, Firewall'
    }
}

Setting	Default value	Description
device_img	'access-switch,core-switch,firewall,router,distribution-switch,backup,storage,wan-network,wireless-ap,server,internal-switch,isp-cpe-material,non-racked-devices,power-units'	The slug of the device roles that you have a image for.
preselected_device_roles	'Firewall,Router,Distribution Switch,Core Switch,Internal Switch,Access Switch,Server,Storage,Backup,Wireless AP'	The full name of the device roles you want to pre select in the global view. Note that this is case sensitive
allow_coordinates_saving	False	(bool) Set to true if you use the custom coordinates fields and want to save the coordinates
ignore_cable_type	'power outlet,power port'	The cable types that you want to ignore in the views
preselected_tags	''	The name of tags you want to preload

Custom Images

You upload you own custom images to the netbox static dir (static/netbox_topology_views/img/). These images need to be named after de device role slug and have the .png format/extension. If you add your own image you also need to add the slug to the device_img setting.

Use

Go to the plugins tab in the navbar and click topology or go to NETBOX_URL/plugins/topology-views/ view your topologies

Update

Run pip install netbox-topology-views --upgrade in your venv. Run python3 manage.py collectstatic --no-input Clear you browser cache.
