Netbox Topology Views Plugin

Create topology views/maps from your devices in netbox. Support to filter on name, site and device role.

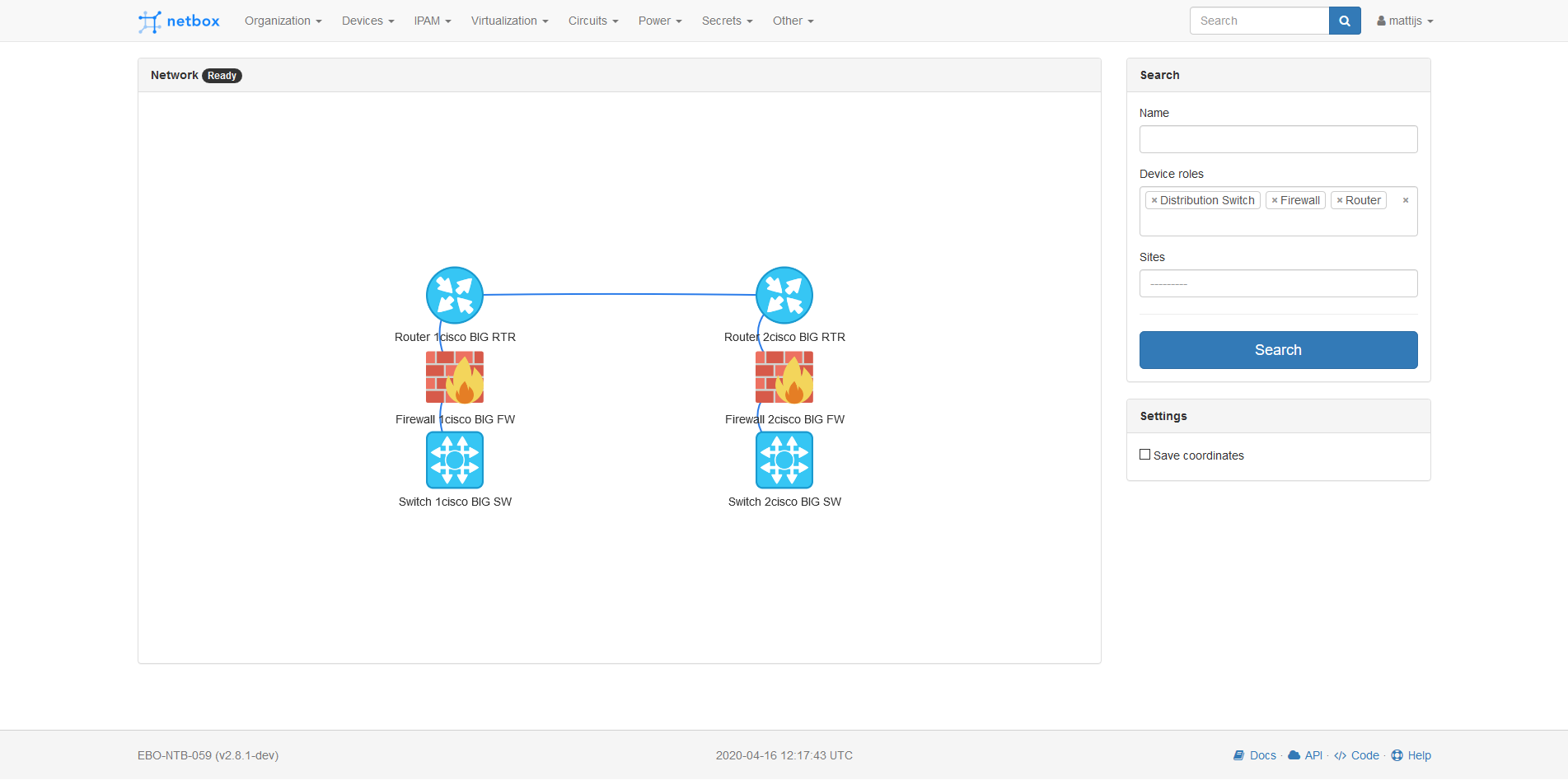

Preview

Install

Run pip install netbox-topology-views in your virtual env.

Add 'netbox_topology_views' to the PLUGINS array in your django configuration file.

Then run python3 manage.py collectstatic --no-input

Custom field: coordinates

There is also support for custom fiels. If you create a custom field "coordinates" for "dcim > device" with type "text" and name "coordinates" you will see the same layout every time.

Use

Go to the plugins tab in the navbar and click topology or go to NETBOX_URL/plugins/topology-views/ view your topologies
