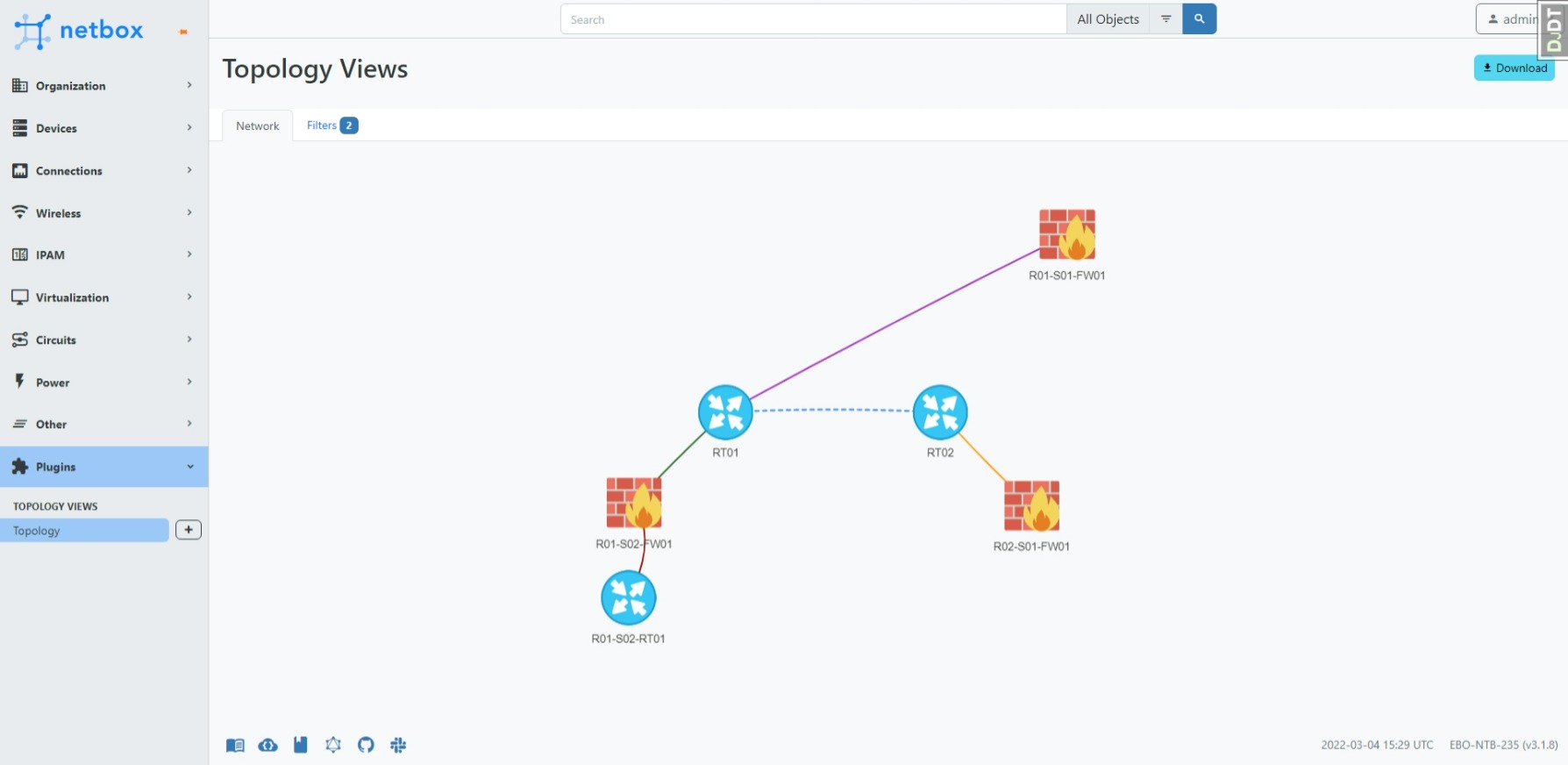

# Netbox Topology Views Plugin ![Version](https://img.shields.io/pypi/v/netbox-topology-views) ![Downloads](https://img.shields.io/pypi/dm/netbox-topology-views) Create topology views/maps from your devices in netbox. The connections are based on the cables you created in netbox. Support to filter on name, site, tag and device role. ## Preview ![preview image](doc/img/preview_3.1.jpeg?raw=true "preview") ## Install **_NOTE:_** For docker please see: [Docker install](https://github.com/netbox-community/netbox-docker/wiki/Using-Netbox-Plugins) The plugin is available as a Python package and can be installed with pip. Run `pip install netbox-topology-views` in your virtual env. To ensure NetBox Topology Views plugin is automatically re-installed during future upgrades, create a file named `local_requirements.txt` (if not already existing) in the NetBox root directory (alongside `requirements.txt`) and list the `netbox-topology-views` package: ```no-highlight # echo netbox-topology-views >> local_requirements.txt ``` Once installed, the plugin needs to be enabled in your `configuration.py` ```python # In your configuration.py PLUGINS = ["netbox_topology_views"] ``` First run `source /opt/netbox/venv/bin/activate` to enter the Python virtual environment. Then run ```bash cd /opt/netbox/netbox pip3 install netbox-topology-views python3 manage.py migrate netbox_topology_views python3 manage.py collectstatic --no-input ``` ### Versions | netbox version | netbox-topology-views version | | -------------- | ----------------------------- | | >= 3.4.0 | >= v3.X.X | | >= 3.3.0 | >= v3.0.0 | | >= 3.2.0 | >= v1.1.0 | | >= 3.1.8 | >= v1.0.0 | | >= 2.11.1 | >= v0.5.3 | | >= 2.10.0 | >= v0.5.0 | | < 2.10.0 | =< v0.4.10 | ### Custom field: coordinates There is also support for custom fields. If you create a custom field "coordinates" for "dcim > device" and "Circuits > circuit" with type "text" and name "coordinates" you will see the same layout every time. It is recommended to set this field to "UI visibility" "Hidden" and let the plugin manage it in the background. The coordinates are stored as: "X;Y". Please read the "Configure" chapter to set the `allow_coordinates_saving` option to True. You might also set the `always_save_coordinates` option to True. ## Configure If you want to override the default values configure the `PLUGINS_CONFIG` in your `netbox configuration.py`. Example: ``` PLUGINS_CONFIG = { 'netbox_topology_views': { 'preselected_device_roles': ['Router', 'Firewall'], 'enable_circuit_terminations': True } } ``` | Setting | Default value | Description | | ------------------------ | ---------------------------------------------------------------------------------------------------------------------------------------------- | ---------------------------------------------------------------------------------------------------------------------- | | static_image_directory | netbox_topology_views/img | (str or pathlib.Path) Specifies the location that images will be loaded from by default. Must be within `STATIC_ROOT` | | preselected_device_roles | ['Firewall', 'Router', 'Distribution Switch', 'Core Switch', 'Internal Switch', 'Access Switch', 'Server', 'Storage', 'Backup', 'Wireless AP'] | The full name of the device roles you want to pre select in the global view. Note that this is case sensitive | | allow_coordinates_saving | False | (bool) Set to true if you use the custom coordinates fields and want to save the coordinates | | always_save_coordinates | False | (bool) Set if you want to enable the option to save coordinates by default | | ignore_cable_type | [] | The cable types that you want to ignore in the views | | preselected_tags | [] | The name of tags you want to preload | | draw_default_layout | False | (bool) Set to True if you want to load draw the topology on the initial load (when you go to the topology plugin page) | | hide_single_cable_logical_conns | False | (bool) Set to True if you want to hide duplicate cables & logical connections | ### Custom Images To change image with associated device use the `Images` page - it allows to map a device role with an image found in the netbox static directory (defined by the plugin config `static_image_directory` which defaults to `netbox_topology_views/img`). You can also upload you own custom images to there - these images will automatically be used for a device (if it does not already have a specified image in the settings) if their name is the device role slug. ## Use Go to the plugins tab in the navbar and click topology or go to `$NETBOX_URL/plugins/netbox_topology_views/` to view your topologies Select your options for the topology view: ![preview image](doc/img/selection_options.png?raw=true "preview")
Hide Unconnected
Hide devices which have no connections.
Save Coordinates
Save the coordinates of devices in the topology view.
Please read the "Configure" chapter to set the allow_coordinates_saving option to True.
Show Cables
Show cable connections between devices, including cables connected to interfaces, front / rear ports, etc., in the topology view
Show Logical Connections
Show logical connections between interfaces (referred to as Interface Connections in NetBox) in the topology view. Where the path between interfaces includes multiple cables (e.g., via patch panels), only the end interface connections are shown, not the intermediate front / rear port connections, etc. This is similar to what was referred to as 'end-to-end' connections in previous versions.
Selecting both 'Show Cables' and 'Show Logical Interfaces' will sometimes result in a topology view with 2 cables per connection as these devices are diretly connected. Select only one of the options or set `hide_single_cable_logical_conns` to True.
Show Circuit Terminations
Show connections which end at a circuit termination in the topology view.
Show Wireless Links
Show wireless connections in the topology view.
Show Power Feeds
Show power connections from power feeds in the topology view.
### Update Run `pip install netbox-topology-views --upgrade` in your venv. Run `python3 manage.py migrate netbox_topology_views` Run `python3 manage.py collectstatic --no-input` Clear you browser cache. ### Permissions To view `/plugins/topology-views/` you need the following permissions: + dcim | device | can view device + dcim | site | can view site + extras | tag | can view tag + dcim | device role | can view device role ## Icons info Power icons created by [Freepik - Flaticon](https://www.flaticon.com/free-icons/power). Power icons created by [Flat Icons - Flaticon](https://www.flaticon.com/free-icons/power) Provider icons created by [Good Ware - Flaticon](https://www.flaticon.com/free-icons/provider)
